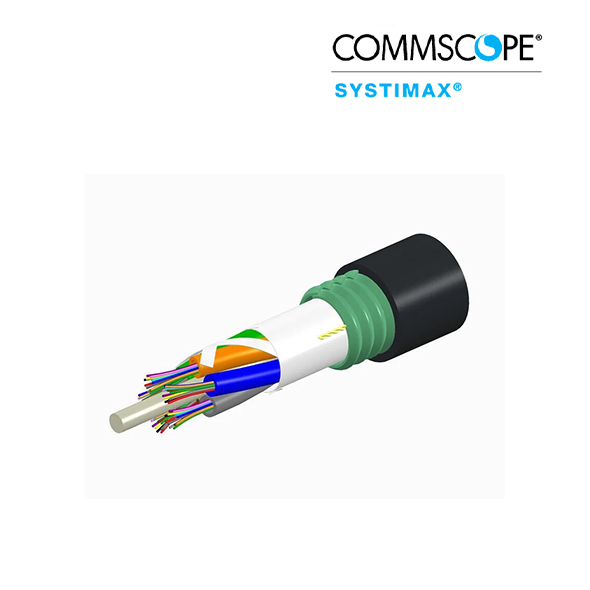

Fiber Optic Outdoor Cable, Steel Armored (12) Core MM OM4 (50/125) (760177808 )
Fiber Optic Outdoor Cable, Steel Armored (12) Core MM OM4 (50/125)
Compare
Specifications:-
Product Classification:-
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber OSP cable |
General Specifications:-
| Armor Type | Corrugated steel |
| Cable Type | Stranded loose tube |
| Construction Type | Armored |
| Fiber Type, quantity | 12 |
| Fibers per Subunit, quantity | 12 |
| Filler, quantity | 4 |
| Jacket Color | Black |
| Subunit Type | Gel-filled |
| Subunit, quantity | 1 |
| Total Fiber Count | 12 |
Dimensions:-
| Buffer Tube/Subunit Diameter | 2.5 mm | 0.098 in |
| Diameter Over Jacket | 11.5 mm | 0.453 in |
Material Specifications:-
| Jacket Material | PE |
Mechanical Specifications:-
| Minimum Bend Radius, loaded | 173 mm | 6.811 in |
| Minimum Bend Radius, unloaded | 115 mm | 4.528 in |
| Tensile Load, long term, maximum | 800 N | 179.847 lbf |
| Tensile Load, short term, maximum | 2700 N | 606.984 lbf |
| Compression | 44 N/mm | 251.246 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 35 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 4.41 N-m | 39.032 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 704 m | 2309.711 ft |
