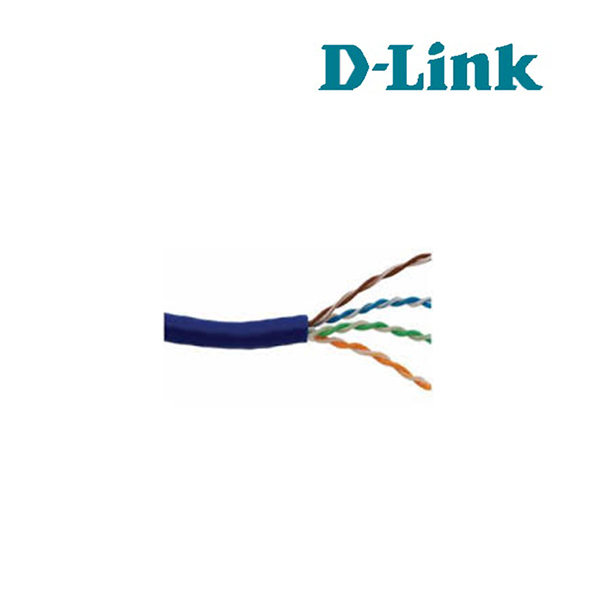

CAT5E UTP CABLE

The Category 5E cable, an enhanced version of Category 5,
adheres to more stringent standards specified by TIA/EIA-568C.2
and IEC 60603-7-4. These cables are made using 24 gauge (AWG)
copper wires with about three twists per inch enabling them to
transmit data at 1000 Mbps (~1 Gigabit per second) with a
frequency of 100 MHz. They are suitable for 10BASE-T, 100BASE-
TX Fast Ethernet and 1000BASE-T Gigabit Ethernet

SPECIFICATIONS

4 Pairs Unshielded Twisted Pair (UTP) Cable
• Conductor Metal: Solid Bare Copper
• Color Code: Blue/ Grey
• Conductor Diameter: 0.5mm Nominal, 24 AWG
• Insulation Diameter: 0.860 Nominal, Insulation Material: HD-PE
• Jacket Material: PVC UL94V-0
• Cable Diameter: 5.0mm nominal
